Allegro Version History

Create a set of components and connectivity and assign a label to the set. This set is called a function overlay and can span pages and contain components and nets.

Place multiple sections of a part as an abstract component and manage pin net connectivity in a table. This hybrid design environment is convenient for analog RF devise and large pin-count designs.

The product choices dialog box now provides an option to show all older, available license strings or just the latest versions.

Analysis Model Manager (AMM) support is now available in System Capture. With AMM, you can control the default model settings, manage external model libraries, assign custom models for different types of components, and create models.

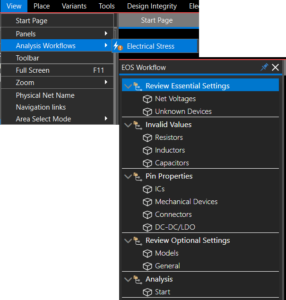

To capture the pin-based information for connectors, pin properties have been introduced in the Electrical Stress Settings dialog box for PIN_VIH, PIN_VIL, ACTIVE_LOW, INT_PU (Internal Pull up), and INT_PD (Internal Pull down).

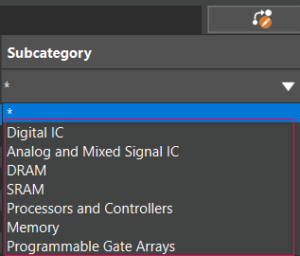

Create a new device category and assign them to existing categories. Parts under undefined categories can now be automatically detected and assigned to the existing categories.

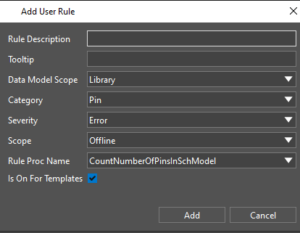

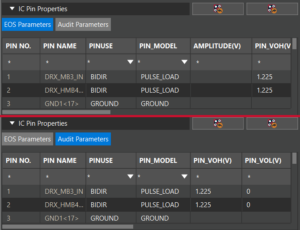

New audit rules are added for ICs under the Connectivity Checks category for auditing a schematic in the Design Integrity solution.

Design owners can now publish the Live BOM from Allegro X System Capture and the Pulse web dashboard. Publishing Live BOM makes the parts list available in the Unified Search filters.

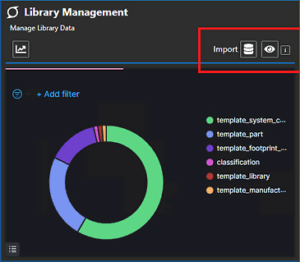

System Capture and Pulse web dashboard now include an option to import a CSV file containing part details in the Append or Replace mode. Append adds only new parts from the CSV to your BOM and updates unused parts if they are in the CSV. Replace overwrites all the existing unused parts in the BOM with the new ones from the CSV file.

When uploading attachments, the versions of comments and tags can also be managed in the 24.1 release. The Attachments tab in the Pulse web dashboard helps you retain the change history and track modification of all previous attachments included in the project. This enables designers to download the older versions of attachments and edit the tags for committed versions.

When adding bypass capacitors to the schematic, you can add multiple-value capacitors to a bypass rail. The default quantity for each capacitor is 1 but can be changed for each row, allowing you to quickly perform what-if analysis.

Creating system-level designs includes the following enhancements:

• Ability to explicitly create system-level designs from the new project dialog box
• Only commands relevant to system-level design are available
• External board files can be imported and new commands are available in the Project Explorer.
• Blocks with split symbols can be placed
• System nets can be navigated
• Adding multiple pages and TOC are now supported

Part Manager now includes the ability to cross-probe to any part instance on the canvas from a row. This helps you view the part in context of its circuitry and make a more informed part decision when selecting a replacement.

Power topology analysis properties can now be configured directly from the power topology view. This saves time and quickly rebuilds the power rails extracted from the design.

Create new parts with single or multiple pin lists repeated in multiple sections (symmetric/asymmetric parts) by copying the pin list in the flattened view of the table.

When selecting a template after launching Publish for Manufacturing application, its configured connection is displayed by default. This helps you decide what template to use before logging in.

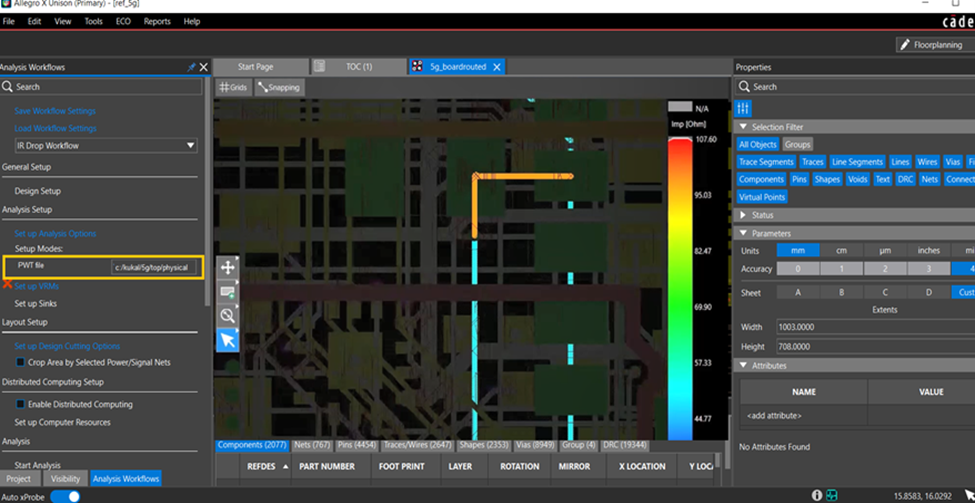

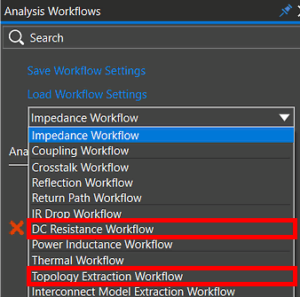

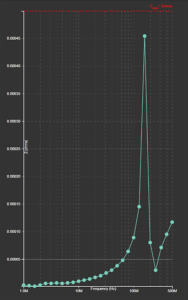

Workflow-assisted Thermal Analysis with the ability to perform what-if analysis to change the power source from user rated or stress derived or change the placement of components on the board. In-Design thermal analysis includes the ability to view the final temperature and power of components in a tabular format and the ability to view thermal visions for each layer.

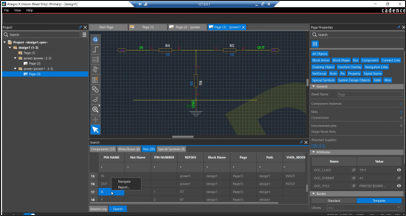

View Schematic as Read-Only with the ability to navigate and search with a lightweight separate installer and no license required.

Design metrics are now collected automatically using the design data as the design evolves. Track and evaluate project progress using charts, such as bar, line, or donut charts, to visualize changes across design versions. This includes 130 out-of-the-box metrics for the schematic, BOM, and layout in the Pulse web dashboard.

Pulse now supports secure collaboration with external design contractors, original equipment manufacturers (OEMs), and original design manufacturers (ODMs) using Cloud Identity proxy services with Zero Trust Network Access (ZTNA) deployment topology. This release provides deployment support with Microsoft Entra ID Application Proxy.

For easier adoption of software updates into your production environment when you are in the same Java stream, you can now set a system variable, CDS_JAVA_HOME, to the custom Java 11 path.

The Pulse User Management module has been upgraded to Keycloak 21.1.2 to support Javea 11. The Keycloak upgrade provides an enhanced user experience for administrators and includes new features such as paging support, streamlined identity provided configuration, and group mapping with SAML2 claims.

An audit feature is now available in Publish for Manufacturing for designers to ensure design integrity prior to publishing ECAD data and reduce data synchronization problems between PFM and the associated PLM system.

3DX canvas has been enhanced with all the functionalities found in the 3D Canvas and unrestricted design size. 3DX canvas can now be navigated with the keyboard using the arrow keys.

You can now use the model mapper tab to map 3D models to footprints, devices, or mechanical components. Import and export functionality allows you to export a mapping file of the existing components and their associated mapped models and import the file after editing to update the components.

Export 3DX canvas designs into the OpenUSD (Universal Scene Description) format that is needed to import into the NVIDIA Omniverse platform.

Frozen dynamic shapes can be selected to resolve all dynamic voiding DRC Errors using the Update Shape command which updates dynamic voids across the entire shape. Additional commands have been added to delete any dynamic voids inside a frozen dynamic shape, select dynamic voids, defining a void area for update.

To void shapes underneath an object (Example: to avoid coupling noise from adjacent shapes, establish impedance reference several layers down, or remove unwanted return path references), the new void adjacent layers command allows you to select objects on the canvas for which adjacent voids will be automatically generated.

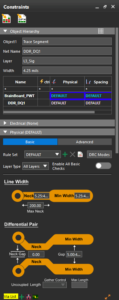

Enter single-ended and differential impedance requirements directly in the cross-section editor for automatic generation of the appropriate physical constraint set for net assignment in the constraint manager.

Two new DRC-related checks minimize signal integrity impacts early in the design process without solely relying on backdrill to reduce via stubs on high-speed interfaces. These checks can also be used to validate the design during final sign-off before release to manufacturing.

• Pre-Backdrill Awareness (Stub Reduction): Validate routed interconnect stubs leveraging the existing backdrill max PTH stub value used by backdrill to flag vias that violate stub requirements. Optimize routing to eliminate stub, reduce the stub by introducing blind/buried vias, or use backdrill to mechanically drill the stub away.
• Layer Transition Reduction: Analyze routed interconnects to determine the number of routed layer transitions on a particular net. The maximum value is used to determine the number of permissible internal routing connections from source to destination excluding surface routing and the first internal routing layer.

Use a new check to calculate the root sum squared (RSS) length of horizontal and vertical routing, which reports a DRC error when it exceeds an acceptable threshold.

A new check is available that counts the number of times a differential pair is routed between two vias of another differential pair, using controls to check for combinations of vias, pins, or vias and pins. There is also additional control to ignore certain low-speed differential pairs, enabling routing between vias.

The Quickviews list in the visibility panel lists all placement layers in a design for quick display, with Component Reference Designators contained inside the component boundary without the need to display additional layers. This new option displays the Top and Bottom placement layers by default with the additional entries for Embedded component and Zone Placement Layers added dynamically.

Objects that can display embedded names is expanded to avoid extensive queries or the display of special layer text that may not always be readable in layout.

• Net Name Labels support Cline, shape, and pins also expanded to support vias
• Drill labels are now expanded to support Thru Via Drills while maintaining the current BB Via/Microvia Drills
• Embedded Component Pin Number display is also added to eliminate the need of displaying the Pin number text.

When routing differential pairs through a dense area, the space transition area has been improved to no longer require excessive lead-ins which results in DRC errors requiring manual cleanup. Improvements have been made to leverage the differential pair trace width and space as well as the pad geometry to calculate the appropriate pad entry that produces DRC-free and manufacturable results.

The new custom smooth option, Allow Electrical DRCs, temporarily ignores electrical constraint DRC errors so that completed routing can be optimized to the shortest, cleanest path and is ready for tuning.

The Delay Tune feature has been enhanced to contour each bump individually to surrounding obstacles with a single drag window, without the need to extend each bump individually using slide, except for final tweaks only to bring the route into spec.

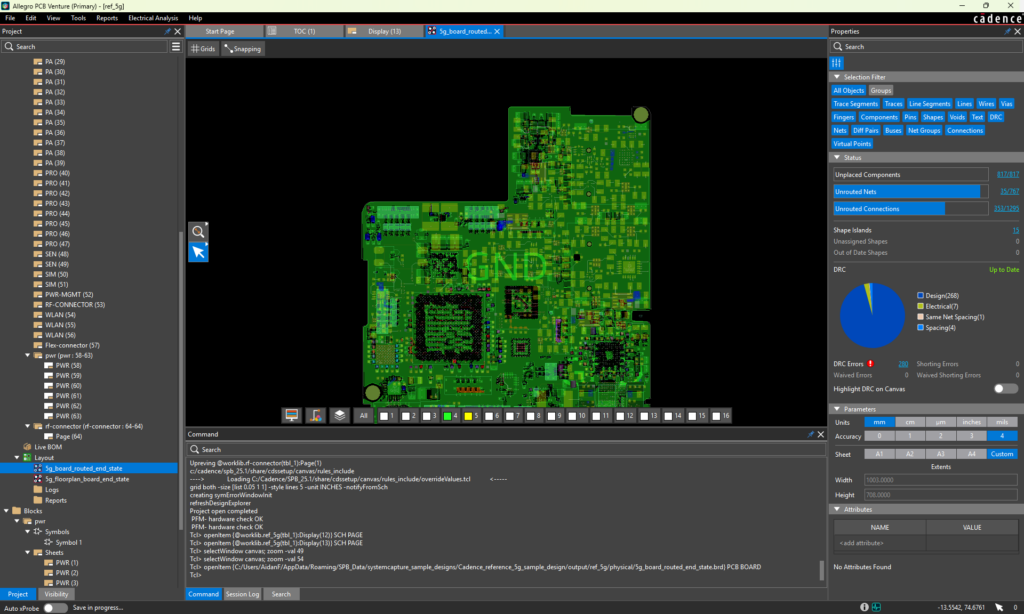

Ignore No Connect (NC) nets by setting a new net property (NC_IGNORE) along with the new user preference (disable_ncnet_count_display). Nets with the NC_Ignore property are not counted in the unrouted nets/unrouted connections count and Quick Reports – Unconnected Pin Report.

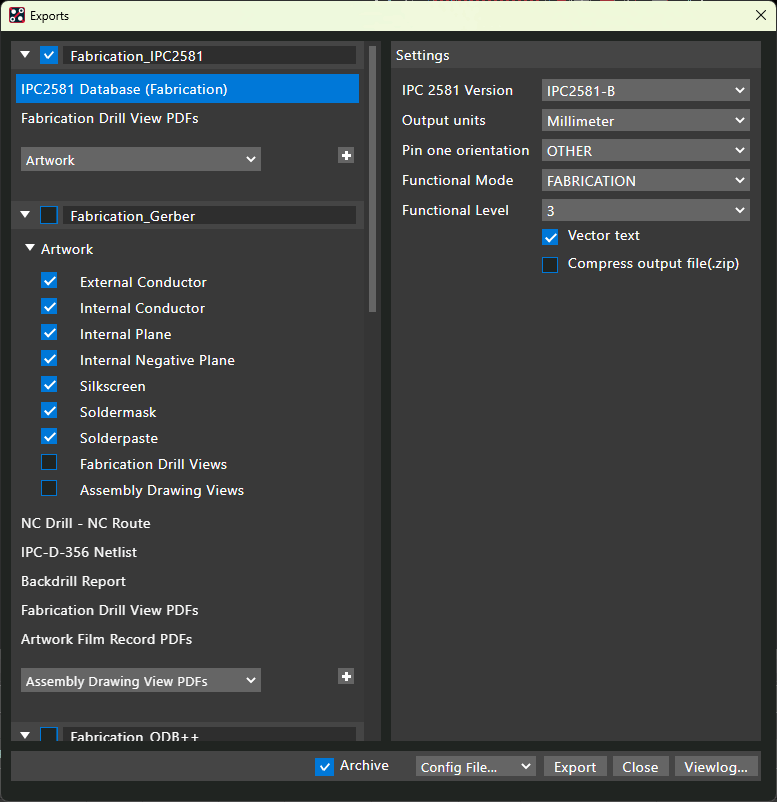

Default film record automation is replaced with configuration-based film categories to intelligently generate film records.

• Layer combinations for external/internal conductor layers or planes based on cross section, silkscreen, solder mask, solder paste, and other design/company-specific films
• Global and film category-based film options, such as PDF sequence, undefined line width, domain classification, and IPC-2581 Layer Type.
• Built-in based level configuration is provided with the ability to save user/company specific configuration including support for saving configuration in the library for reuse with other designs.

New Acid Trap check, minimum angle with convex checks, builds upon the existing minimum angle acid trap check, which only find and verifies concave situations. The new check also finds and verifies convex situations for clines and static shapes and combinations of these two design objects as they relate to pads and vias.

The FIDES standard is now supported for real-time analysis to give better reliability results.

System Capture now supports locale language settings for Chinese and Japanese.

In addition to defining constraints at the block level, now you can define constraints on nets or pin pairs at the page level.

Filters are introduced for version metadata, layouts associated with schematics, tags, and comments. This is helpful when comparing versions or when rolling back to earlier versions. You can also edit tags assigned to previously committed versions of a design.

Project View and design view have been added to the open projects dialog box to search, filter and sort data.

New Tcl commands are added to enhance design data management in System Capture.

The thermal map generated for the board is now available as a tab within System Capture. Any analysis can be run in the thermal map tab. New icons have been added to the Thermal Floorplan results dashboard to support this integration.

RF blocks can now be imported into an existing System Capture design without affecting the design’s grid. The RF design gets imported as a read-only block if the grid settings do not match. A technology file can be directly exported from Allegro PCB Editor for CUL translation. The Cadence Unified Library Translator has many enhancements to support appending, deleting, or comparing translated libraries.

Components on the canvas can be directly added to a function. Changed parts in variants appear in a different color and alternate parts appear in italics. When rows or cells are selected, the count of the selected rows is available.

When designers want the library properties to remain in sync with the libraries or preserve overrides in the design, Part Manager flags user properties and you can replace these edited properties with the values in the library.

Expand or collapse Live BOM panels to view the graphical charts or data in more detail. Filters have been introduced to find the required information based on the specified criteria. To view part related errors and warnings, you can now click the parts in the table. Hover over the charts to see relevant parts based on their count and percentage.

Power symbols can now be replaced based on property.

Multiple pages can now be deleted in one go in the Project Explorer.

User-defined properties are now supported on the page border of the canvas. You can add, modify or delete them.

This directive controls which injected properties are to be excluded while checking for mismatched values.

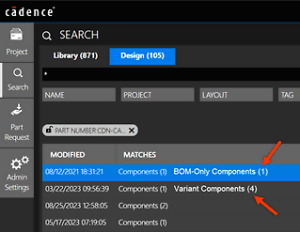

Enhancements include permission-based design search results, four new sections to access required details (Project, Design, Layout, and Other), preview the schematic, view project details on the web, open linked layout versions of designs and blocks, visual indicators in search results help to identify recommended designs.

PFM is now supported in Allegro X Advanced Package Designer (APD). Administrators can specify a package as a layout source for .sip or .mcm files committed to Pusle. This enables layout engineers working in a pulse-enabled APD environment to publish ECAD data to the configured PLM system.

Publish for manufacturing provides options to extract and publish a set of metadata from Pulse to 3DEXPERIENCE to capture metadata about IC package designs in 3DEXPERIENCE for users who do not have access to the Cadence Allegro X Advanced Package Designer (APD) Application.

Support has now been added to deliver multiple files with a single utility.

A Filters option has been added to support version metadata, layouts associated with schematics, tags and comments. This allows you to compare versions or rollback to an earlier version.

Two default tags, Ready for Schematic and Ready for Layout, are available in an out-of-the-box Cadence installation when committing a design to Pulse.

Pulse administrators can customize the Live BOM summary pane by adding or removing widgets for a tailored view of the BOM summary. Changes can be published for all users connected to the server.

The previous Mandatory Utilities section is now revamped and renamed as Utility Selection Rules. In these settings, administrators can define which utilities must be run when publishing to a PLM System and define the default utilities for data publishing to a PLM system.

Enhancements to the 3DEXPERIENCE connector include a product number search enabling you to search by string, storing PLM revisions in the pulse project, assigning number filtering, and automatically filtering board numbers based on PLM structure to ensure that the assembly-board relationship configured in the PLM system guides you towards the proper board selection in PFM.

Live BOM updates include the following:

• • • Expand or collapse live BOM panels to view charts or data in more detail.
    • Filter the required information based on specified criteria and add filters directly from the table using icons on hover or clicking charts.
    • View part related errors and warnings by clicking directly in the parts table
    • Hover on charts to see relevant parts based on their count and percentage

The Unified search interface has been updated to include permission-based design search results. The User interface has been improved to include four new sections: Project, Design, Layout and other as well as including the ability to preview the schematic, view project details on the web, and open linked layout version controls for the design and blocks. Design rules can now be configured to include visual indicators in the search results to help users identify and select recommended designs.

DFA alignment can be used for group placement by selecting multiple components. Set the DFA_PAUSE_LEVEL to 4 in the User Preferences Editor.

When using the legacy DFA table you will receive an option to move to the new DesignTrue DFA table.

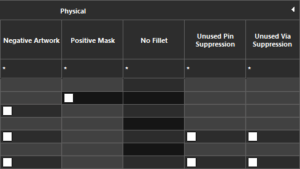

A new check has been added to check the pastemask against a component body (PLACE_BOUND or DFA_BOUND).

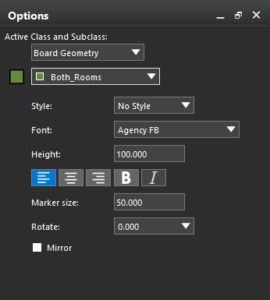

Configure your layout editor environment in a local language by setting Use local language under UI- Language & Fonts in User Preferences.

Switch the basic component overlap and height checks on the 2D canvas to utilize the DFA Bound shapes instead of the traditional place bound shapes.

The following enhancements have been made to the 3DX canvas:

• • • Cut the 3D view of the PCB in any combination of the X, Y, and Z axes to get the exact view required.
    • Control the color of all manufacturing materials to produce photo realistic 3D images
    • Increase detail and control of visibility and transparency for detailed 3D views
    • Customization of the 3DX canvas with visibility and preferences
    • Control the display of 3D spacing violations to see space overlaps and space needed.
    • Measure the 3D air gap

Copy and paste pad geometries within the same tab or between the design and mask layer tabs to save time during padstack creation.

Configure the plot setup for generic operating system-related page setup in the preview window along with other advanced options.

Customize the timing meter colors. Colors are no longer limited to the defaults of Red (Error), Yellow (Warning) and Green (Pass) conditions.

High-Speed interfaces require special treatment to avoid signal integrity issues under components and component pins by generating openings in adjacent planes while preventing routing from running through these openings in the planes. Now you can automatically generate adjacent keepouts by tagging certain components, pins and nets that require this treatment.

Adjacent keepout definitions can be managed on the schematic or layout and can be transferred back and forth using the Front to Back Flow.

Manage and edit the properties in the layout editor using Properties or inside the Constraint Manager.

Manage net properties in the properties section of Constraint Manager. Use the electrical properties worksheet to enable nets or groups of nets that should have dynamic adjacent keepouts generated.

Automatically generated keepouts are associated with component/pin and move/mirror along with the component, including during zone and embedded placement.

A new Query Based Rules workbook is available in the same net spacing domain and drives spacing rules between vias padstacks in the design. This allows a high level of flexibility in developing specific Same Net Via to Via rules based on groups of Vias, trace connected or not trace connected (stitch vias).

Sometimes you need to reduce trace width when routing through BGA pin fields, which results in a higher impedance causing signal integrity issues. Enhancing traces with small trapezoidal copper shapes (routing tabs) lowers impedance to avoid these impedance discontinuities. Tabbed routing has been enhanced to improve net selection and analysis. The Xnet dialog box has advanced filtering and hierarchical group selection to ensure all nets are selected for analysis. Improved analysis dialog box includes net groups and differential pair membership for each row allowing a more focused review by sorting results. Additional options are available to verify tab counts between net group members or between the nets within a differential pair.

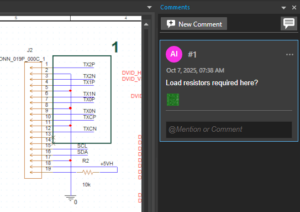

Ensure the internal markup and comments are not exposed to external resources when you send the designs out to third-party vendors. Quickly remove comments and markup from the database and archive them to a local file.

Generate a thermal floorplan to estimate the life of the PCB design and improve placement of components early in the design cycle.

Launch Topology Workbench directly from the System Capture canvas to analyze the signal integrity of high-speed nets at the schematic, floorplan, and layout stages.

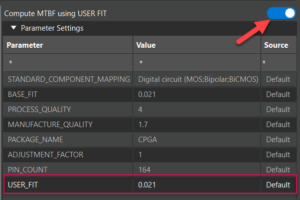

Perform MTBF analysis on a design to estimate the performance and safety of electrical, mechanical, and electro-mechanical parts for Allegro X Designer and above.

Enable the verification of all the components in a design in the early stages. Set up a power distribution network on the schematic to estimate the DC power consumption by components in the PCB design for Allegro X Designer and above.

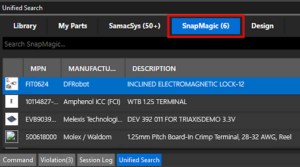

In addition to adding parts from external content providers directly into a design, Unified search now supports adding parts to libraries from SamacSys or Ultra Librarian.

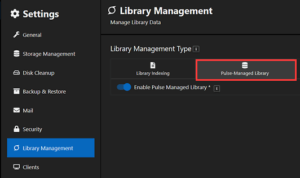

Create a new template library, create categories and subcategories in libraries to improve component searching, edit multiple parts in a spreadsheet and enhanced part validation improves the library authoring experience.

Integration to AWR Microwave Office and Allegro PCB Design applications provide a way to create complex PCBs with RF design. Enhancements to this integration include a single impot from AWR Microwave Office into System Capture and more.

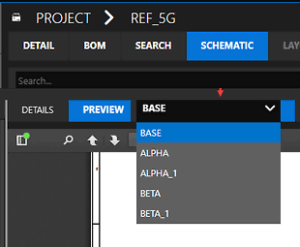

May enhancements have been added to efficiently complete variant designs including creating function groups, defining alternate parts, defining variants, and the ability to switch to variant views.

System Capture now offers long-term archiving ability with the PDF/A format in addition to the PDF and SmartPDF formats.

Allegro X EDM library parts can be updated with changes in the Windchill part data and vice versa.

Enhancements to the Pulse Web Dashboard are available to single-user and multi-user environments of System Capture. Enhancements include additional filters, save column visibility, project-specific URL for bookmarking, and more.

Easily compare two versions of a design to determine the correct path forward as a team. Compare the latest revision or the previously committed version of the design.

Users in a multi-user environment can disconnect from the Allegro Pulse server and work in the offline mode, ensuring uninterrupted work using parts in the design cache.

Cadence Doc Assistant presents help content as individual easy-to-read topics and has improved the speed and relevance of search capabilities.

Define secondary drill definitions on either the primary or secondary side.

Expanded the capability of microvia drill support beyond circle and square-plated holes to include microvia slot. This allows rectangular or oval-plated slots while following standard microvia constraints in the design.

Drilled hole fields for circle and square holes as well as round slot fields for rectangle and oval shot holes have been added for accurate unit-controlled values of the drill hole size before plating and tolerances.

Pitch values for rows and columns can now be defined to calculate the spacing automatically for a multi-drill.

When dynamic shapes need to remain constant to protect critically circuitry and maintain design intent, suspend or freeze dynamic voiding instead of converting to static shapes. Once frozen, new objects entering a shape will not void and will generate a DRC error.

Components placed in a zone with some of the pins protruding into another zone can cause buried or floating pins. Easily check to verify that all pin pads of a component exist on the same placement layer.

Designate stackup differences in particular areas of your rigid-flex designs by defining one zone inside another for scenarios where one shape needs to be surrounded by another.

Zone modifications can now be performed without activating Shape Edit Application Mode.

Define the fill-in material for multi-layer PCBs to account for the different dielectric constants that affect the electrical characteristics of conductors running across the dielectric​.

Facilitate a collaborative design review environment with the ability to markup and comment design feedback directly in the PCB canvas. Markups are stored in the design database, streamlining the design review process.

Automatic mapping and fine-tuning of the x, y, and z placement provides efficient methods for mapping 3D models to the footprint directly in the library.

Export the complete 3D representation of the entire design or individual objects as STEP, IGES, ACIS or a PDF.

Define dimension parameters to apply a line width globally for all dimensions.

Define the net during Z-copy to copy etch shapes to other layers. Incorporate a subclass wildcard to copy the shape to multiple layers.

A new delete option will remove routing from the previous module for components that are part of another module.

Reuse device files and component definitions that are currently in the design when loading an updated netlist.

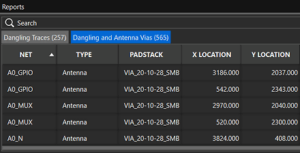

New net short properties report is available to easily find all the objects in the design with the Net short property to verify the nets being shorted.

New high-voltage constraint checks to verify creepage and clearance rules. Design Rule check system recognizes non-plated slots between two high-voltage objects and recalculates creepage and clearance. Creepage and clearance vision provides graphical feedback with color-coding directly on the canvas for efficient analysis.

Quickly generate power planes for a section of the design of the entire design based on pin placement, boundary, or design outline. Review power plane escape and adjust placement or constraints to improve power connections.

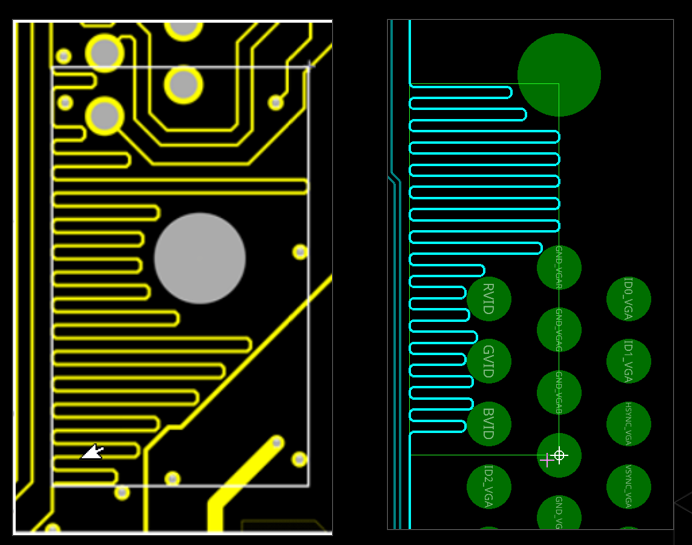

A new routing tab utilizing complex shapes that follow serpentine pattern contouring to pins and vias allows you to maximize tab size and reduce impedance when routing through CPU pin-fields.

Performance and response time has been improved for opening and saving designs, wiring, and canvas selection.

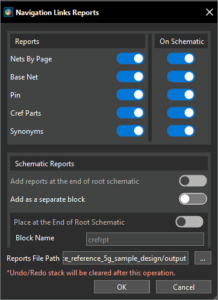

Configure System Capture to show the winning or base net on the canvas when multiple nets are aliased.

Specify a prefix or suffix for blocks in hierarchical designs. This suffix or prefix is automatically applied to the physical net names for nets and buses.

Blocks and pages can be excluded from printing.

Page border symbols and properties on page borders are now brought in as properties when designs are migrated from DE-HDL.

To avoid accidental editing of designs, especially in a team design environment, lock a design block or page to enable a read-only status and watermark.

Find and replace feature is now enhanced to replace special symbols such as power, ground, or ports.

Define the default behavior for wire name assignment and display settings when wires are connected to a power source or copying circuitry.

For multi-section instances or split instances, all sections are processed in a single transaction, enabling reference designator preservation.

In hierarchical blogs where the number of bits were reduced, automatically purge the deleted bus bits.

Select a group of components on the schematic canvas and assign pin numbers based on data from the part definition when working with single-pin multi-selection components.

Specify a part code and add a preferred part regardless of the availability of parts in project libraries. Add this preferred part for any variant using a placeholder part number or browse through available parts to choose one.

Do Not Install (DNI) components in the base design can be indicated with a cross over the component.

Quickly identify the nets that are perfect matches or partial matches in the Port/Pin Assignment dialog box with color coding.

Print system -level designs in all print formats including PDF and Smart PDF.

Link the .MCM files from ADP Plus and Allegro System Capture schematic to ensure your project stays in sync.

Edit Allegro DE-HDL libraries directly within System Capture and launch OrCAD Libraries to create or edit OLB schematic libraries.

Improve design creation and quality with additional rules including connectivity checks for MISO and MOSI pins, ref des visibility checks, fiducial checks, test pad checks, and more.

Updated Tcl commands and new directives to improve customization.
