How to Perform Pin Swapping Automatically with SKILL

In complex, high-density designs, performing pin swapping on connectors and programmable components is necessary to optimize routing, improve the stackup, and reduce the number of required vias. However, this can be a daunting task which needs to be completed and verified in both the PCB Layout and the schematic to ensure design accuracy. SKILL can be used to script this process, automatically determining the optimal pin assignments and swapping the pins accordingly.

This how-to will provide step-by-step instructions on how to use the Pin Swapping script written by Robert Finley, to optimize the PCB layout through automatic pin swapping on connectors and programmable devices. To follow along, download the demo files above the table of contents.

How-To Video

4ZSzHBfzA1ZdGQPhy3oqby

Preparing a Design for Pin Swapping

Step 1: Open the provided design, swapback_example.DSN, in OrCAD Capture.

PinOptimize Step2
Place Parts Menu

Step 2: Select Place > Part from the menu.

PinOptimize Step3
Expanding Part Search

Step 3: Expand the Search for Part sub-pane by selecting the + to the left of Search for Part.

PinOptimize Step4
Searching for Parts in OrCAD

Step 4: Enter *HEADER* into the search bar and click the Part Search button or press Enter on the keyboard.

Step 5: Select the part labeled 4 HEADER/Connector.olb and click Add.

Note: The CONNECTOR library has been added to the library list and the 4 HEADER component has been automatically selected.

PinOptimize Step6 edited
Place Parts in OrCAD

Step 6: Select the Place Part icon.

Step 7: Click the schematic canvas to place the part.

PinOptimize Step8
Header Placement for Pin Swapping

Step 8: Place a total of eleven instances of the header. When finished, right-click and select End Mode (ESC).

Note: These headers will act as routing guides. If headers are not automatically annotated during placement, this can be configured by selecting Options > Preferences > Miscellaneous > Auto Reference > Automatically reference placed parts.

Step 9: Select Place > Wire from the menu, the Wire button on the toolbar, or press W on the keyboard.

PinOptimize Step10 edited
Wiring Components in OrCAD

Step 10: Click to place a short wire on each pin of each header. When finished, press Escape on the keyboard.

Note: To quickly duplicate the previously placed wire, press F4 on the keyboard. Using this command, a wire will be placed under the previous wire at the next grid spacing.

Step 11: Select Place > Net Alias from the menu, the Net Alias button on the toolbar, or press N on the keyboard.

PinOptimize Step12
Placing Net Aliases in OrCAD

Step 12: Enter TEMP1 as the net alias. Click OK.

PinOptimize Step13 edited
Assigning Net Aliases

Step 13: Click to place the alias on each net. The number will increment automatically as each alias is placed. When finished, right-click and select End Mode or press Escape on the keyboard.

Assigning PCB Footprints

Step 14: Right-click and select Selection Filter or press CTRL-I on the keyboard. The Selection Filter window will open.

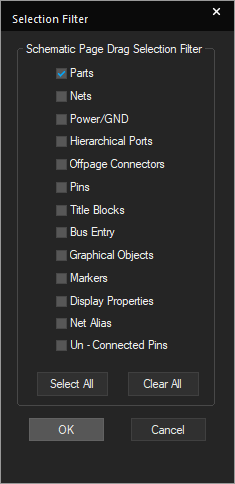

PinOptimize Step15
Filtering Objects in OrCAD Capture

Step 15: Select Clear All to deselect all checkboxes then check the box for Parts. Click OK.

PinOptimize Step16 edited
Selecting Filtered Objects in OrCAD Capture

Step 16: Drag a box over all headers to select them.

Step 17: Right-click and select Edit Properties. This will open the Property Editor tab.

PinOptimize Step18
Editing Object Properties in OrCAD Capture

Step 18: Select PCB Footprint from the property column. Right-click and select Edit.

PinOptimize Step19
Assigning PCB Footprints in OrCAD Capture

Step 19: Set the footprint name to JUMPER4 and click OK.

Note: The JUMPER4 footprint has been assigned to all headers.

Step 20: Click Apply and close the Property Editor tab.

Updating the PCB Layout

Step 21: Select PCB > Update Layout from the menu.

PinOptimize Step22
Synchronize the Schematic and PCB

Step 22: The Update Layout window will open. Click Sync.

Note: This will open the PCB layout in OrCAD PCB Designer. A pop-up window may appear to select the desired PCB software.

Placing Components on the PCB

PinOptimize Step23
Placing Components in OrCAD PCB Designer

Step 23: Select Place > Components Manually from the menu.

Note: The Placement window will open with a list of components left to place. These are the headers added in preceding steps.

Step 24: Check the box next to Components by Refdes to place all headers at once.

PinOptimize Step25
Selecting Multiple Components for Placement

Step 25: Click Hide to hide the Placement window.

Note: Closing the window will prevent placement of any components.

PinOptimize Step26
Header Placement for Pin Swapping in OrCAD PCB Designer

Step 26: Click to place the headers on top of test points. Make sure that each test point is covered by a pad. Right-click and select Done when finished.

Note: This process will intentionally create DRC error markers.

Step 27: Select File > Save from the menu.

Running the SKILL File in OrCAD PCB

PinOptimize Step28
Activating the Command Window in OrCAD PCB Designer

Step 28: Select Display > Windows > Command from the menu to open the Command window.

PinOptimize Step29 edited
Loading a SKILL File in OrCAD PCB Designer

Step 29: Enter the command skill load “swapback.il” into the command window and press Enter on the keyboard.

PinOptimize Step30
Running Pin Swapping SKILL in OrCAD PCB Designer

Step 30: PCB Designer will respond with “t.” Type swapback and press Enter to launch the script.

PinOptimize Step31
Verifying Pin Swapping Changes

Step 31: The Generating Annotation Script window will open. Scroll to view the list of changes to be made. Close the window.

PinOptimize Step31Note

Note: A message will appear in the Command window when the script finishes.

PinOptimize Step32

Step 32: Confirm that the generated .Script files exist in the project’s allegro directory.

Running a Script in OrCAD Capture

Step 33: Return to OrCAD Capture.

PinOptimize Step34
Activating the Command Window in OrCAD Capture

Step 34: Select View > Command Window from the menu.

Step 35: In the command window, place the cursor on the last line.

Note: If the last line does not start with Capture>, press Enter on the keyboard and place the cursor on the appropriate line.

PinOptimize Step36
Running a Script in OrCAD Capture

Step 36: Enter the command source {.\allegro\RenameScriptOrcad.Script} and press Enter on the keyboard.

PinOptimize Step37
Automatic Pin Swapping in OrCAD

Step 37: View the results. The nets connecting to J1-J11 have been named accordingly.

Wrap up & Next Steps

Quickly perform pin swapping on connectors and programmable components to optimize routing, improve stackups, and reduce the number of required vias with SKILL in OrCAD. See how the features of OrCAD PCB can accelerate your PCB Layout with a free trial.
