Lesson 10: Manufacturing Export in OrCAD

This lesson demonstrates how to generate a manufacturing export in OrCAD X PCB Designer. After you complete this topic, you will be able to:

  • Generate IPC-2581 output
  • Generate Gerber Artwork files
  • Generate NC Drill file

To follow along, continue with the design from the previous lesson or use the downloaded materials.

If materials were not downloaded at the start of the walk-through, they can be accessed in the Materials tab of this lesson.

Manufacturing Export in OrCAD Video

Open in New Window

Generating the IPC-2581 File

Step 1: Select Manufacturing Deliverables > IPC-2581 from the Design Workflow.

PCB22.1 L9 Step2

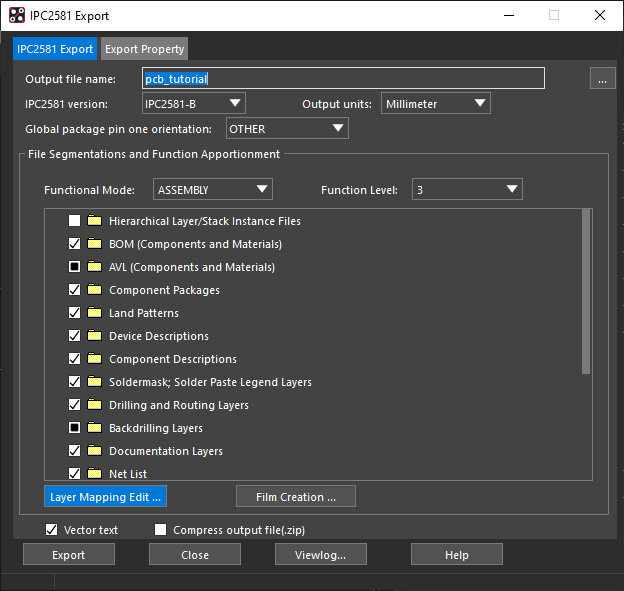

Step 2: The IPC2581 Export window opens. Select Layer Mapping Edit.

PCB22.1 L9 Step3
Mapping Layers for IPC-2581 Export

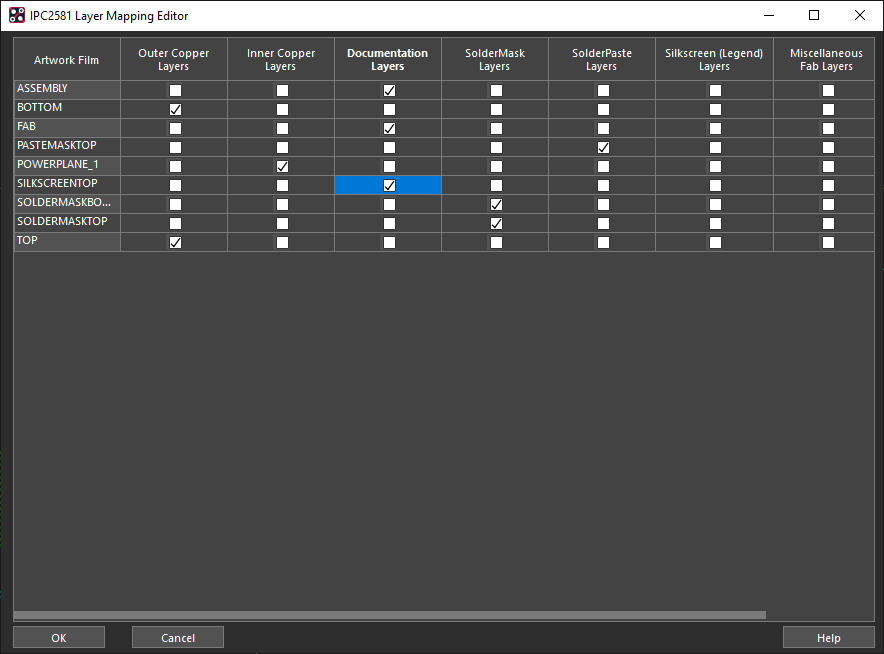

Step 3: A table of layer maps open. Select ASSEMBLY, FAB, and SILKSCREENTOP as Documentation Layers.

Step 4: Select SOLDERMASKBOTTOM and SOLDERMASKTOP as SolderMask layers.

Step 5: Select PASTEMASKTOP as a SolderPaste layer.

Step 6: Click OK to save the settings and close the window.

IPC-2581 Manufacturing Export in OrCAD
Exporting IPC-2581 in OrCAD PCB

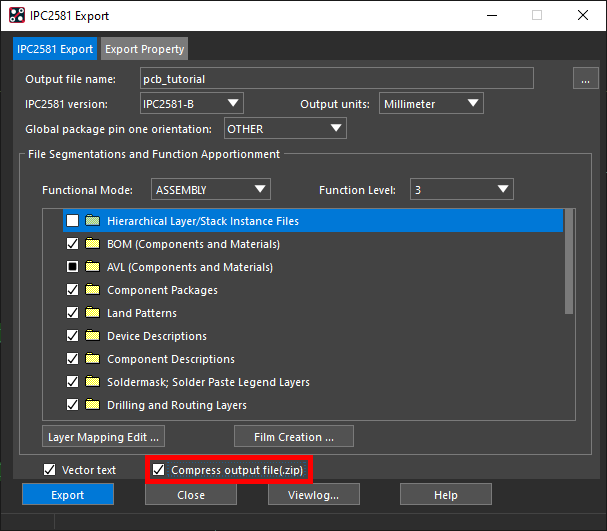

Step 7: Check the option for Compress Output File. Click Export to generate the file.

Step 8: An export log appears, showing general board information and any errors that may have occurred during the export. Close the log file.

PCB22.1 L9 Step8Note

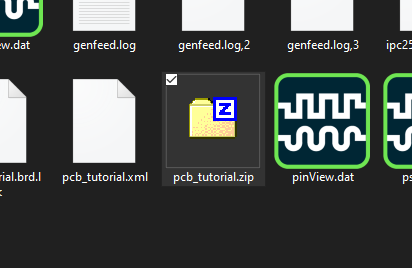

Note: The output file is saved as allegropcb_tutorial.zip in the working directory.

Generating Gerber Manufacturing Export in OrCAD

Step 9: Click Close to close the IPC2581 Export window.

Step 10: Select Manufacturing Deliverables > Artwork (Gerber) from the Design Workflow.

Step 11: Select the General Parameters tab.

Gerber Artwork Manufacturing Export in OrCAD
Configuring the Gerber Artwork Export in OrCAD

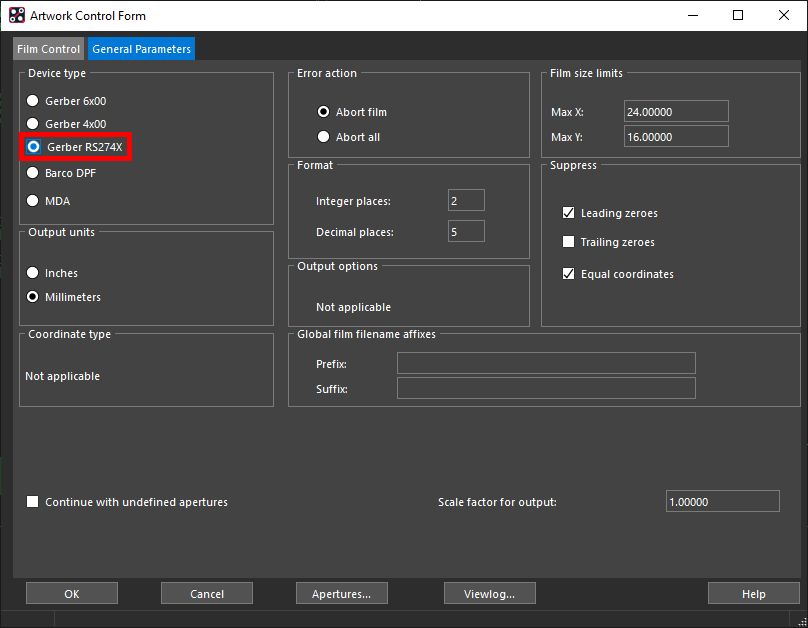

Step 12: Select Gerber RS274X for the Device Type.

PCB22.1 L9 Step13
Generating Gerber Artwork Manufacturing Export in OrCAD

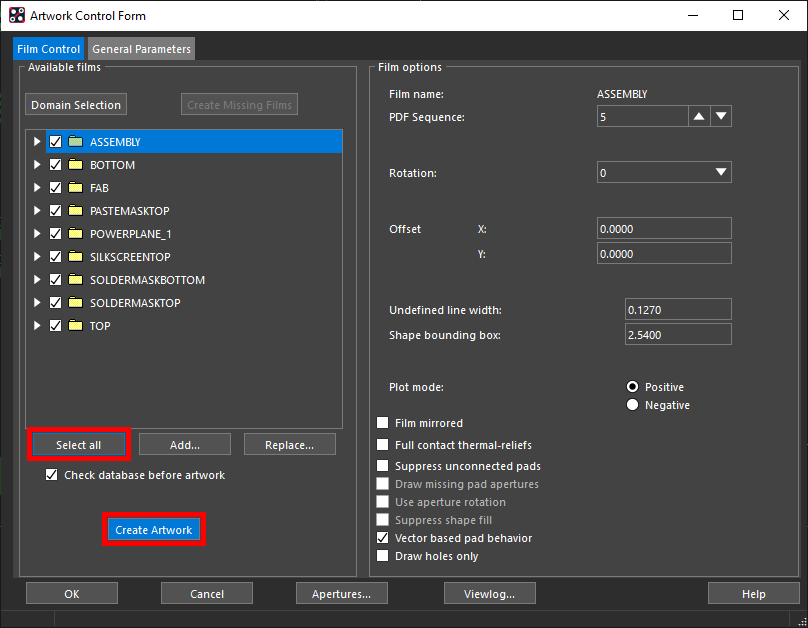

Step 13: Select the Film Control tab. Click Select All and Create Artwork.

Step 14: An export log appears, showing the film names and information, as well as any errors that may have occurred during the generation. Close the log file.

Step 15: Click OK to close the Artwork Control Form.

Generating the NC Drill Data

Step 16: Select Manufacturing Deliverables > NCDrill from the Design Workflow.

NC Drill Manufacturing Export in OrCAD
Generating NC Drill Manufacturing Export in OrCAD

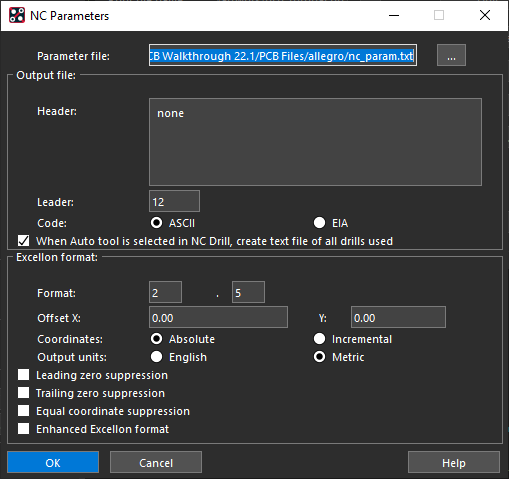

Step 17: Select Parameters. Use the default settings and click OK.

PCB22.1 L9 Step18
Generating a Drill File in OrCAD

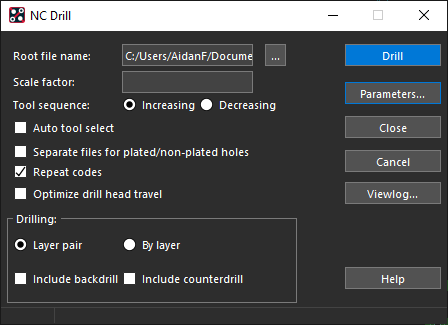

Step 18: Select Drill to generate the drill file.

Step 19: Click Close to close the window.
