This lesson demonstrates how to generate comments using design review and markup in OrCAD X PCB Designer 23.1. After you complete this topic, you will be able to:
To follow along, continue with the design from the previous lesson or use the downloaded materials.
If materials were not downloaded at the start of the walk-through, they can be accessed in the Materials tab of this lesson.

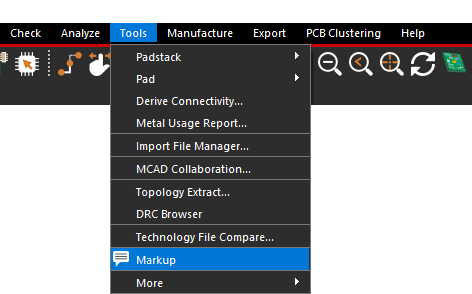

Step 1: Select the Markup icon on the toolbar or Tools > Markup from the menu to open the Comments panel.
Step 2: In the Comments panel, select New Comment.
Step 3: Zoom into the desired section of the board.
Step 4: Type the comment into the Comment bar.
Note: Tag coworkers using the ‘@’ symbol and their username.

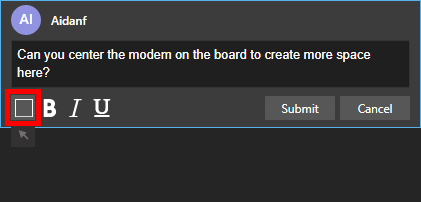

Step 5: Select the Draw Rectangle icon.
Note: To draw an arrow, hover your mouse over the draw rectangle button and click to select the arrow tool.

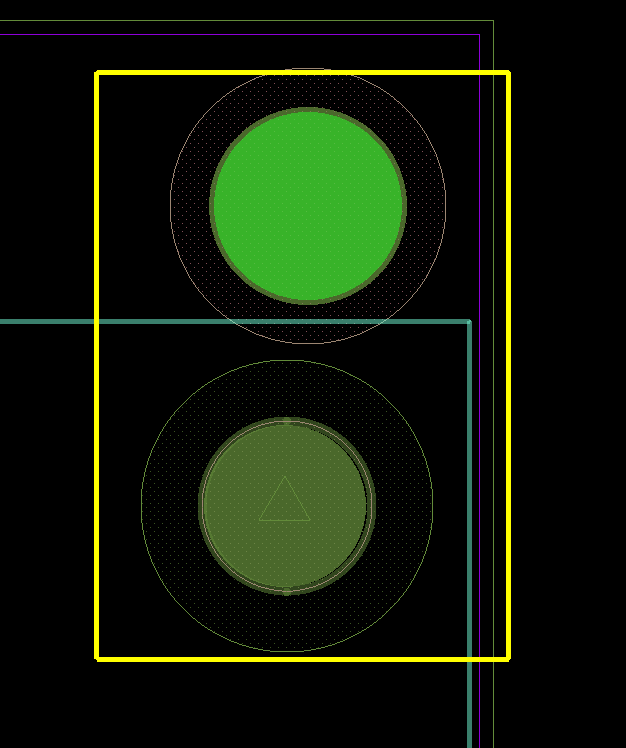

Step 6: Click to begin the rectangle. Move the mouse to draw the rectangle over the area of interest on the PCB and click to finish the rectangle.

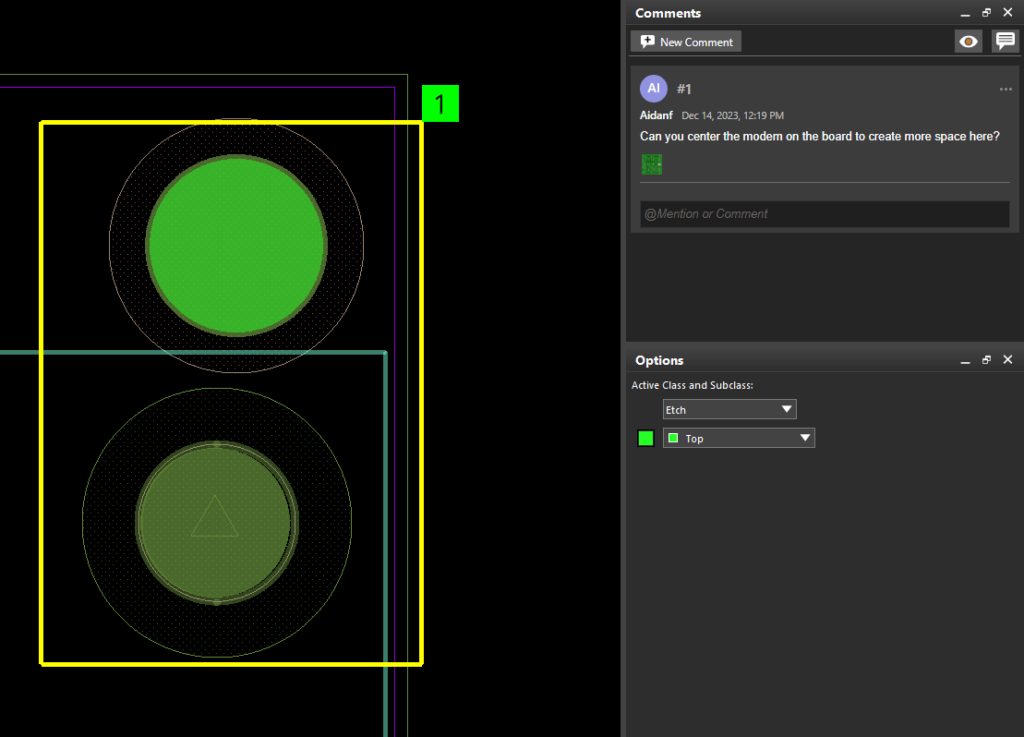

Step 7: Click Submit.
Note: The comment has been embedded into the design database and is now accessible for any users to review.
Step 8: Open the board file in OrCAD X.
Note: Design Review and Markup is also available in OrCAD X Presto 23.1 and Allegro X 23.1, allowing seamless design reviews with team members.
Step 9: Select the Markup icon on the toolbar or Tools > Markup from the menuto open the Comments panel.
Step 10: View the comments. Click the comment to be brought to the location on the PCB.

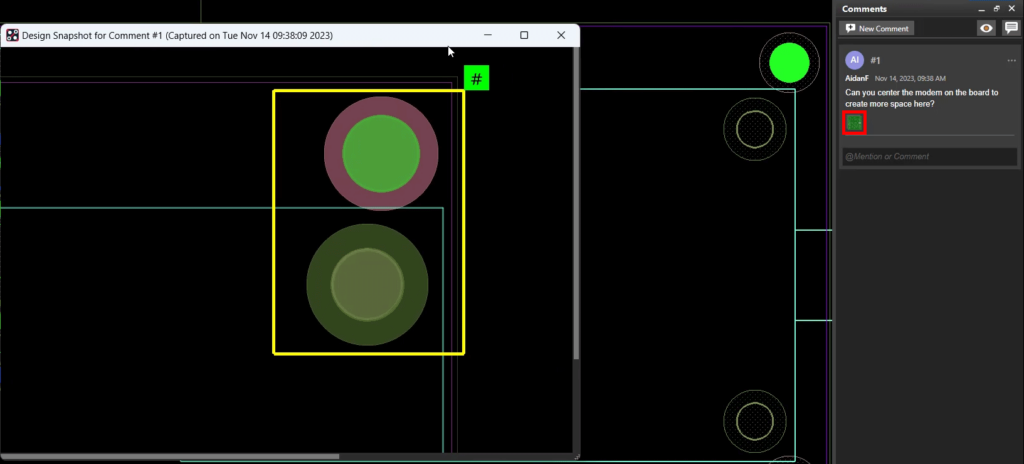

Step 11: Click the icon of the PCB to bring up a snapshot of the PCB when the comment was recorded.
Step 12: Click in the @Mention or Comment box and type a response to the comment. Click Submit.

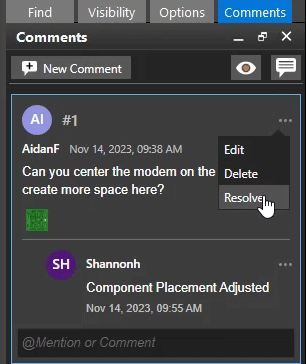

Step 13: Click the ellipsis at the top of the comment and select Resolve.
Note: Here you can also edit and delete comments.
Step 14: In the Comments panel, click the Comment icon to turn off visibility of the comments.
Step 15: Repeat this process as needed to efficiently communicate with team members and perform design reviews.
