PCB Walk-through 9: Manufacturing Export

This walk-through demonstrates how to generate manufacturing export files. After you complete this topic, you will be able to:

  • Generate IPC-2581 output
  • Generate Gerber Artwork files
  • Generate NC Drill file

To follow along, continue working with the design completed in PCB Walkthrough 8 or open the provided board file in the folder directory, PCB Walkthrough 9_Manufacturing Export.

9J5VJK1s9qnqaRRjJkhoKE Open in New Window

  1. In the Design Workflow, select Manufacturing Deliverables > IPC-2581

Note: All layers have been generated during the setup of Gerber films.

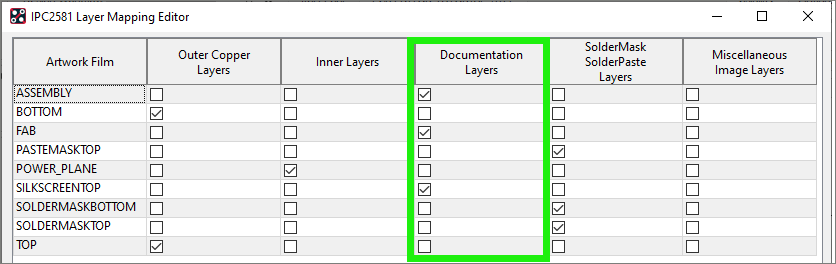

  1. Select Layer Mapping Edit.
pw9 step3
  1. Select ASSEMBLYFAB, and SILKSCREENTOP as Documentation Layers.
  1. Select PASTEMASKTOPSOLDERMASKBOTTOM, AND SOLDERMASKTOP as SolderMask SolderPaste Layers
  1. Click OK.
Graphical user interface, text, application

Description automatically generated
  1. Select Compress output file and Export.
  1. In the Design Workflow, select Manufacturing Deliverables > Artwork (Gerber).
pw9 step8
  1. Select the General Parameters tab and select Gerber RS274X
Graphical user interface, application

Description automatically generated
  1. Select the Film Control tab. Select All and Create Artwork
  1. Click OK
  1. In the Design Workflow, select Manufacturing Deliverables > NC Drill.
Graphical user interface, text, application

Description automatically generated
  1. Select Parameters. Use the defaults and click OK.
  1. Select Drill.
  1. Close the window.
